Base loaded half sloper - part I.

11. února 2010 v 22:12 | Petr, OK1RP |  Antennas
Hello all Topbanders,

it's really long time ago when I posted the last article. I would like to send my appologize to all of You. I hope that I will be able to update this place more often...

In preview articles "Antennas inspiration"we talked about different antennas suitable for small pocket size lots. In fact I am still looking for some of that also as my fixed QTH is so small that I have no more than 10m x 15m garden available and just 6m high roof. No tower, no trees around.

Some time ago I found interesting article about shortened half sloper writen by Don, WD8DSB. There is what I found as the first on the internet about this type of the antenna:

Rugged 160 Meter sloper...

Our best selling antenna is our 160 meter, ruggedized version of our popular "half-sloper". We have been building these antennas for over 12 years. They work and work well.
It's features heavier, 14 awg insulated wire, a built-in SO239 connector and a solid cover over the coil. Ideal for 100-150 watt radios, this antenna solves the problems of working "top-band" and eliminates the need for a tuner. Trimmed to resonance at your favorite spot in the band this antenna offers omni-directional performance with minimum effort.

We start with a tightly wound 14 awg insulated wire coil

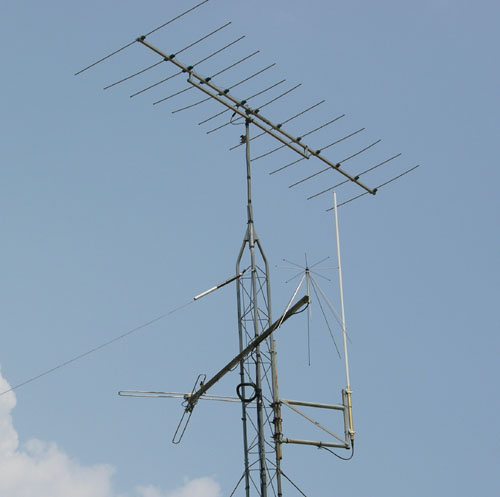

This is the finished antenna, ready to be hung on your tower.
The radiator wire will be left several feet long to allow you to "prune" it to the length that tunes it to the exact spot in the band that you need. Once tuned near the center of the band at your location the antenna will cover the entire band without any retuning or tinkering. Note: this antenna can withstand quite a bit of power but we have NOT tested it above 150 watts. We don't build "high-power" antennas. We build antennas that give you that extra performance.

This antenna ships 75' in length and will be trimmed back to 68' or less on installation. It works best when attached to your tower at about the 45-50' level. This allows the wire to be angled down to the ground at a comfortable angle (somewhere near 45 degrees) and attached to a suitable support 8 or 9 feet off the ground ( to keep someone from touching it while you are transmitting) 45' or so away from your tower.

We have had one of these on our tower for 12 years with no problems

We have made several improvements to the design over the years. The one shown here is a very early production model. (12 years in use...)

73 de Stan, KC5UYF

OK, it sounds good. What is important is that the installation need to have grounding point and some pipes or way to simulate the vertical part of the half sloper going to ground or better to the radials system.

The minimal height seems to be around 8-10m. Of course not for DXing but to come to TB in general. I am going to thinking about that...and need to find the original post from Don, WD8DSB.

73 - Petr, OK1RP
...-.-


Buď první, kdo ohodnotí tento článek.

Komentáře

1 Petr Petr | E-mail | Web | 11. února 2010 v 23:20 | Reagovat

Does anybody using this antenna already? Which experiences You have please...?

Petr

2 Petr Petr | E-mail | Web | 12. února 2010 v 18:21 | Reagovat

After posting the basic informations about the base loaded half sloper I got few emails regarding the limited space installation in my case.

Well I have this antenna installed from last weekend and I am testing it intensively on TB for now... (feed point apex 10m, 15mm Cu strap going in parallel with pipes vertical to ground, no radials now)

I will post more about the installation and results soon.

73 - Petr, OK1RP

3 Petr Petr | E-mail | Web | 16. února 2010 v 1:55 | Reagovat

Hi,

I made some measurement of the installed half sloper by MFJ-259B. Some resonance now seems to be in band on 1820kHz where the impedance is 34 +j2 (almost zero imagine part). Very interesting results > will be posted soon.

73 - Petr, OK1RP
